Wireless Energy Management PTAC Thermostat WiFi Connected

Item No.: CH7400
• Fan off delay
• Compressor on delay
• 7days programmable
• Temperature and humidity display
• Single, two stage ,multi stage heating&cooling
Description
Description
Always your partner and technical backing
As a production-oriented enterprise with independent research and development, E-top focuses on providing customers with solutions and product customization services in the HVAC industry, and provides customers with a full range of technical support.
19+
Production Experience year
65000
Qty/month
35
Lead time
18
Warranty

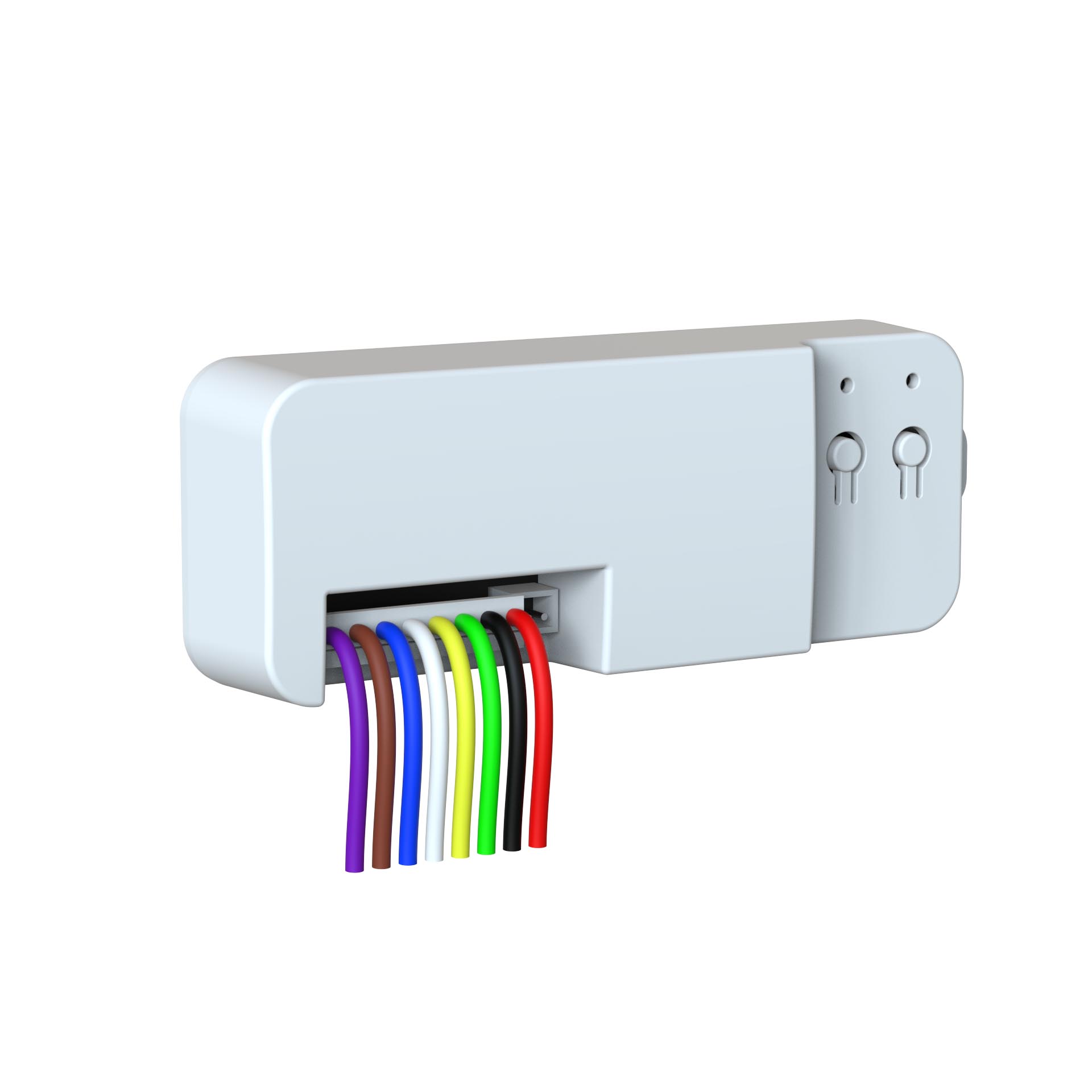

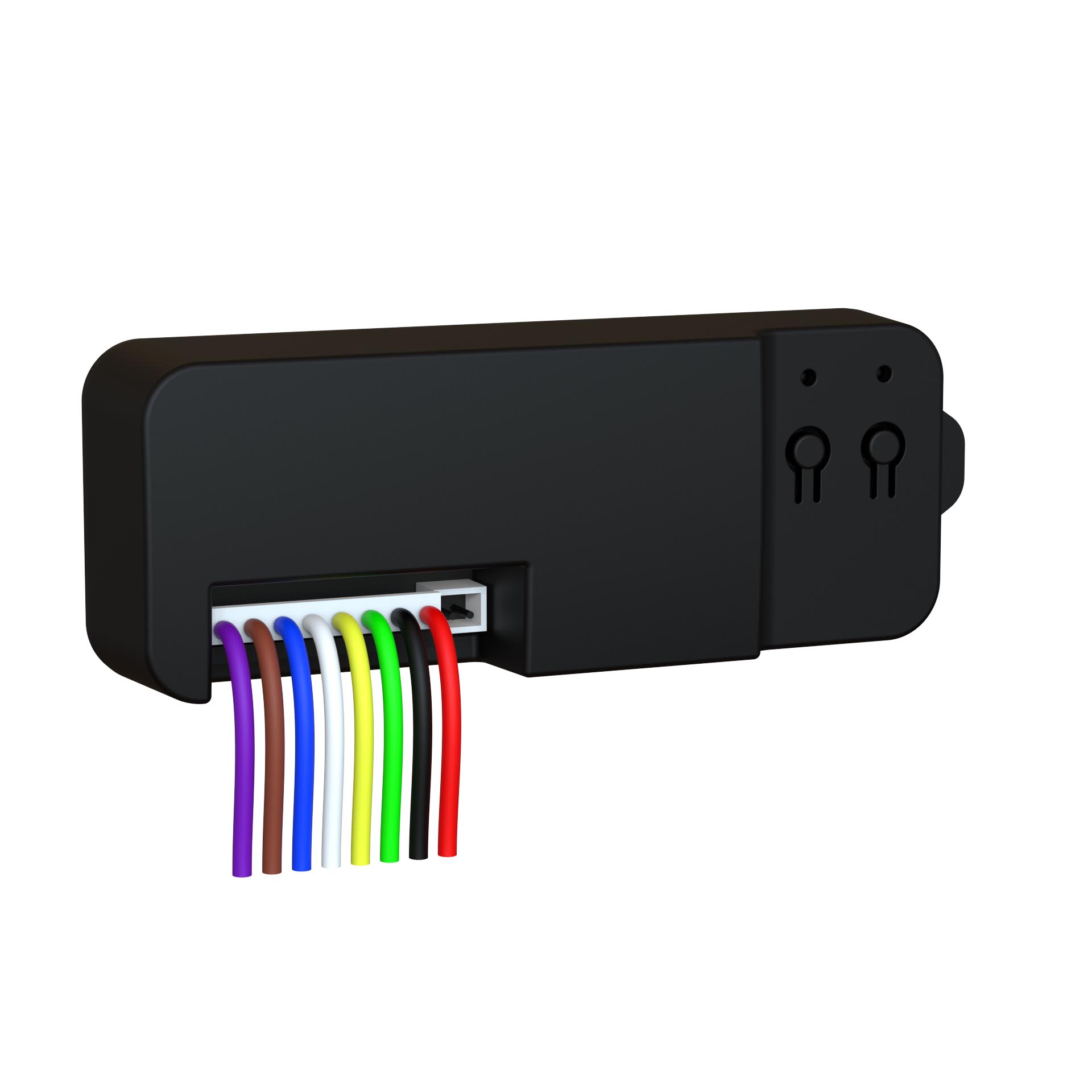

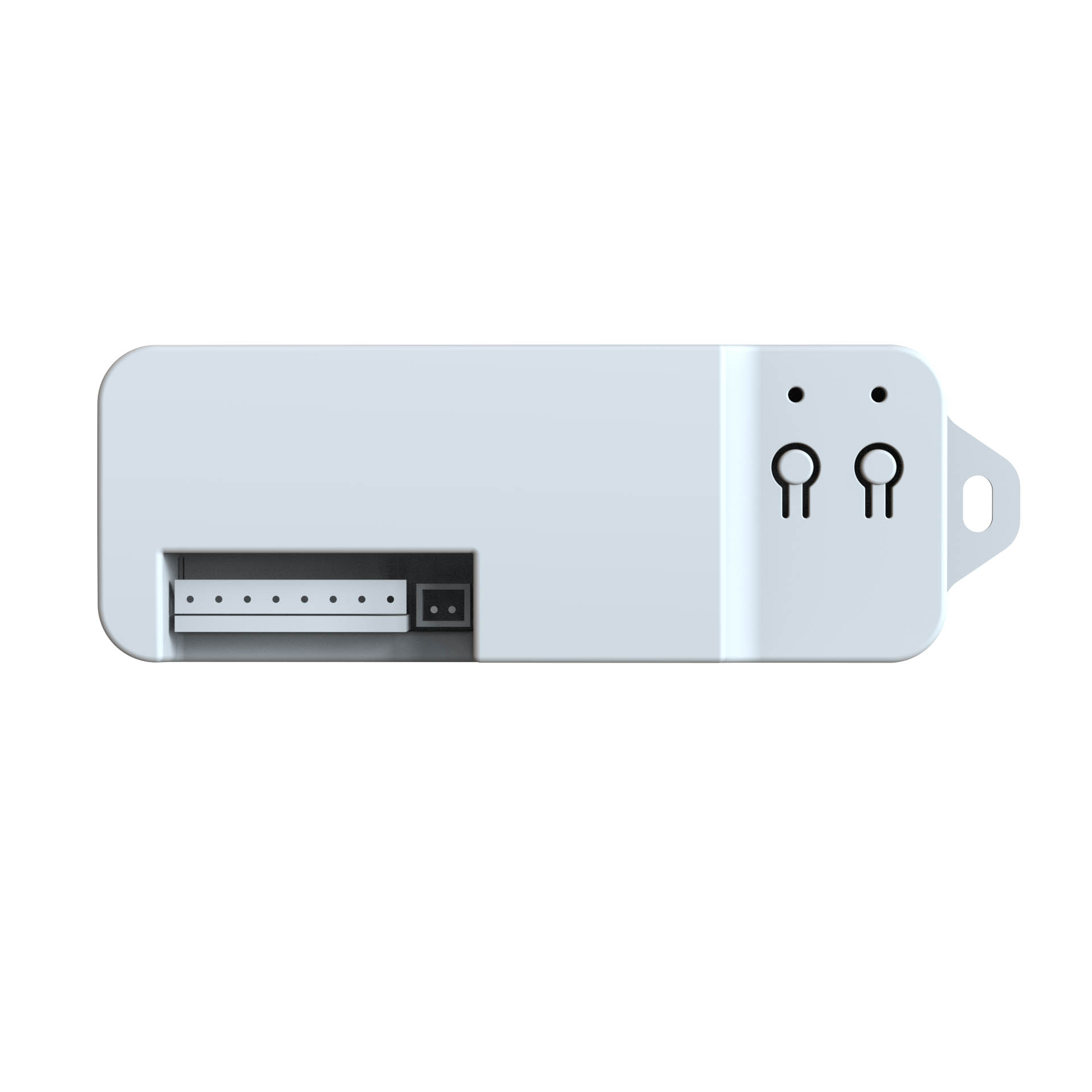

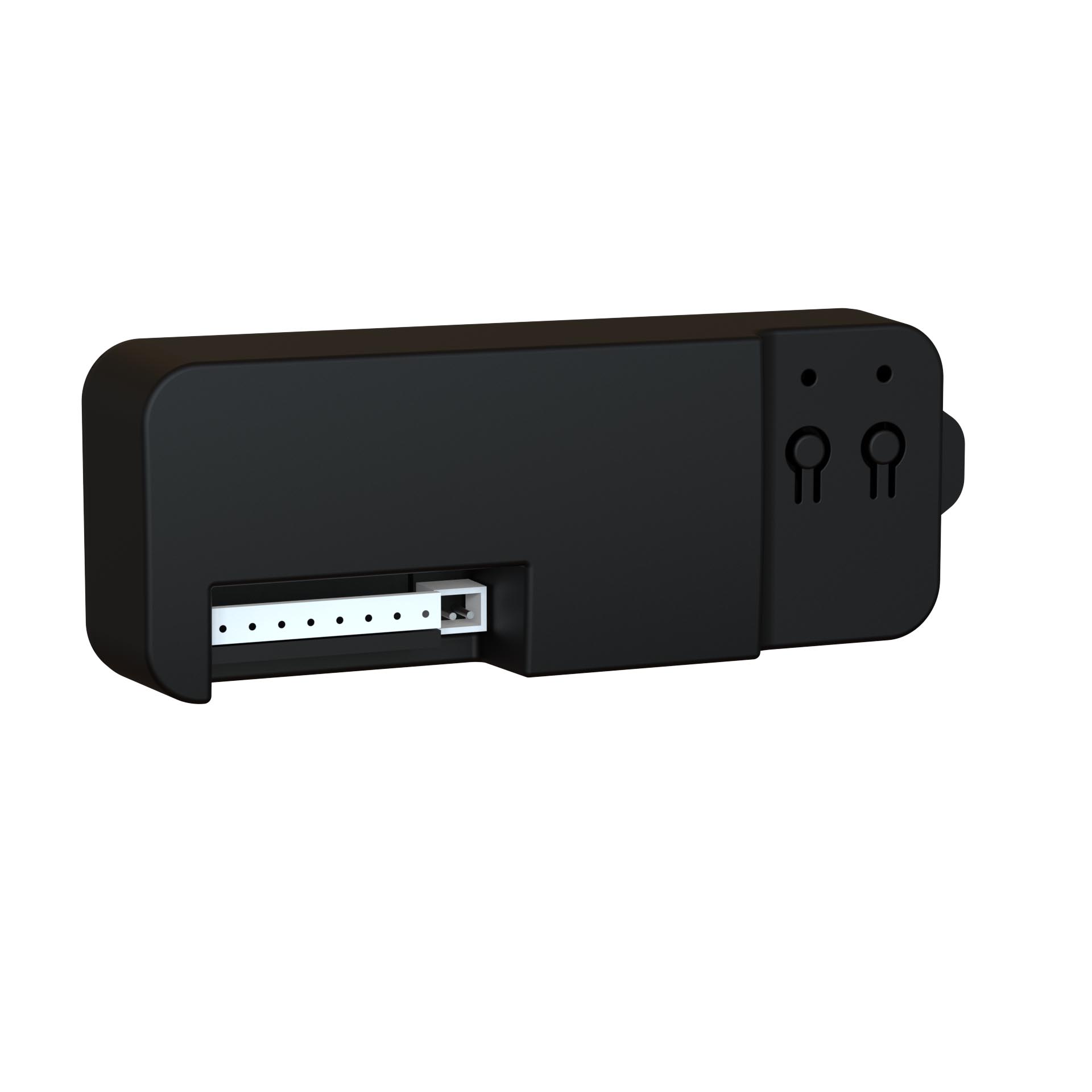

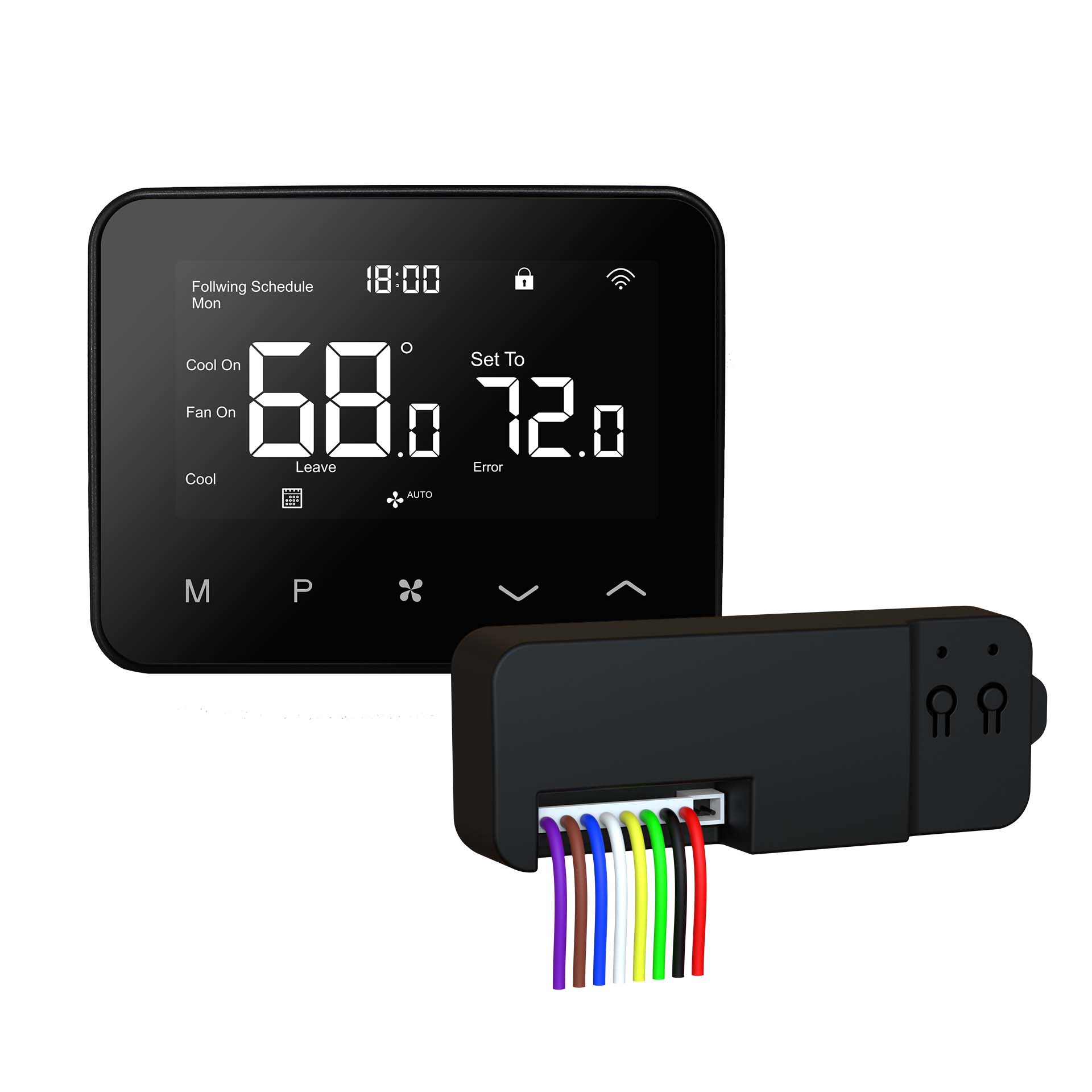

CH7400 Wireless Digital PTAC Thermostat and Receiver is a new energy saving solution for the hospitality industry and all other markets who use PTAC units. This weekly programmable PTAC thermostat designed to work on just about any PTAC brand.  It comes complete with a wall mounted digital thermostat and interface module which easily plugs into most late model PTAC units. It offers affordable comfort contol for any room. It features low and high speed fan controls and a large temperature and set point display with model negative touch screen. It can be used with either a heat strip or heat pump PTAC.

This wireless PTAC (Through Wall Air Conditioner) thermostat is compact and powered by 24V, ensuring safe operation at low voltage. It is particularly suitable for users who want remote control and intelligent management, as it supports Wi-Fi connectivity (optional), which means you can easily control and adjust your air conditioning system through smartphone applications or smart home platforms. This thermostat provides 2-level heating and 1-level cooling functions, ensuring a suitable indoor climate in different seasons and temperature conditions. 2-level heating provides a wider temperature adjustment range, which can be fine-tuned according to ambient temperature changes and user needs. 1-level cooling ensures effective cooling in hot weather. Due to its wireless design, the installation process is easier and no wiring is required, reducing installation time and cost. Its user-friendly interface makes operation easily and easy to understand, whether it is setting the temperature, switching modes or adjusting the timing, it can be easily completed. Overall, this wireless PTAC thermostat is an ideal choice for modern homes and commercial spaces. It combines high efficiency, intelligence and convenient operation to provide users with a comfortable and energy-saving environmental control experience.

Specification

Name Smart Wireless Programmable PTAC Thermostat
WiFi Application TuyaSmart, Smart Life, Ecohome Life ( Tuya cloud)
Wireless Option 433/868mhz
WIFI 2.4G( Don’t support 5G)
Transmitter 2*AA battery
Receiver 24Vac
Max. Current 1 amp
Set Temp. Range 41-95F
Ambient Temp. 0~50 ℃
Relative Humidity 85%
Sensor Type NTC β=3950 R25℃=10KΩ
Battery life 1 Year
Accurancy ±1F
Modes MAN/Holiday/PRG Mode
Programmability 7 days 4 periods
Window Open Detection Yes
Child Lock Yes
RF Distance 100 meter in open area
Protection Class IP20
Thermostat Dimension 125*98*23.5MM
Receiver Dimension
Materils ABS+PC (Rohs certificated)
Certificate CE(RED/EMC/LVD), Rohs
OEM 1. Customized logo and package
2. Customzied software ( change to customer’s user interface and control logic
3. Customized hardware ( change the PCB and schematic based on the request)


Wiring:
